GraphQL Query

Query everything you need in a single GraphQL query.

API Version

Two versions of GraphQL are available in newsletters.

• Version 1: the legacy version of the API, all examples in this documentation still refer to it
• Version 2: an extended version of the Sirius GraphQL API

Playground

You can explore and inspect the schema of Sirius Newsletter GraphQL API in its dedicated playground accesible at https://*.sirius.press/api/graphql-newsletters/v1. To be able to get data from your newsletter, don't forget to specify { "x-newsletter-id": <ID-FROM-URL> } in the header section.

You can also activate built-in autocompletion using Ctrl + Space in Sirius GraphQL query editor.

Generate UX by writing a query

Sirius newsletter offers a unique system that generates the UX used by newsletter editors directly from the query defined by developers. It means by writing your query, you also create a tailored admin for editors!

Two special fields allows you to create editable newsletters:

• textArea: defines an editable text block
• articlesArea: defines an editable article list block

Example

{
  summary: textArea(name: "summary")
    @placeholder(value: "A beautiful day")
    @label(value: "Daily summary")
    @textAreaOptions(multiline: true)

  leads: articlesArea(name: "leads", limit: 1)
    @label(value: "Lead")
    @seed(ids: [3195768])
    @areaOptions(warnIfUnpublished: false) {
    id
    title
    image(width: 320, height: 200, aspectRatio: ratio_3x2) {
      url
      alt
      width
      height
    }
    nodes(where: { type: { eq: text }, textNode: { type: { neq: heading } } }) {
      __typename
      ... on TextArticleNode {
        textNode {
          type
          text
        }
      }
    }
  }
}

In this example, two custom blocks are defined:

• A multiline text block:

  • Accessible using summary variable in template
  • With "Daily summary" as label
  • With "A beautiful day" as placeholder

• A articles list block:

  • Accessible using leads variable in template
  • With title, image and nodes as data accessible on each article
  • With "Lead" as label
  • That should contain at most 1 article
  • That uses article id 3195768 as seed in preview

Directives

All of these directives allow you to customize

Usable on all area fields

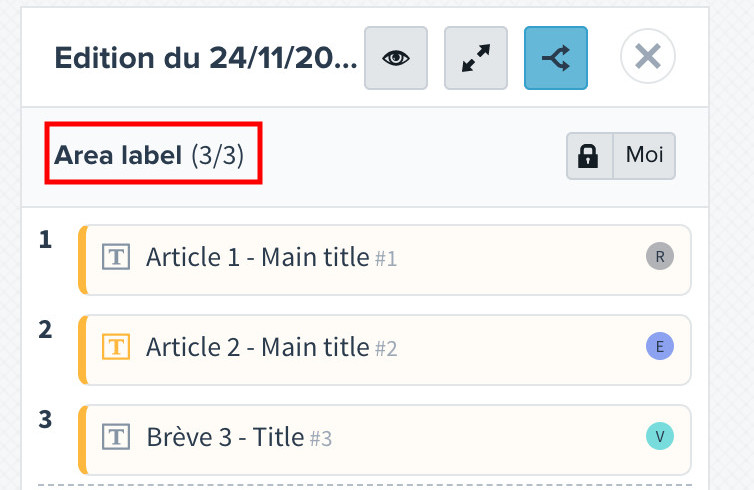

• @label(value: String!): define the label displayed in editor's interface. Usable on textArea and articlesArea




(articlesArea)

(textArea)

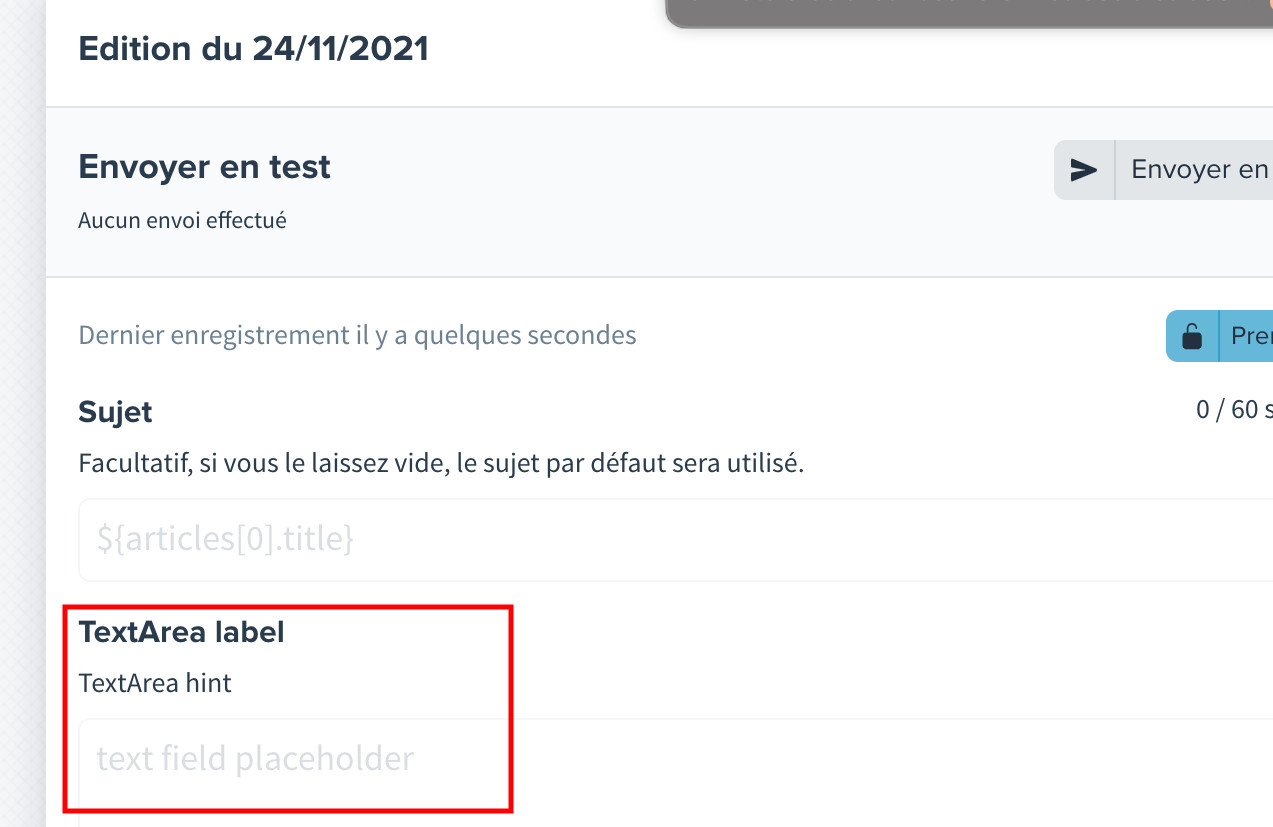

Usable on textArea field

• @placeholder(value: String!): define the placeholder of the text input.
• @hint(value: String!): define the hint of the text input.
• @textAreaOptions(multiline: Boolean): define if the text input accepts multiline or not.

Usable on articlesArea field

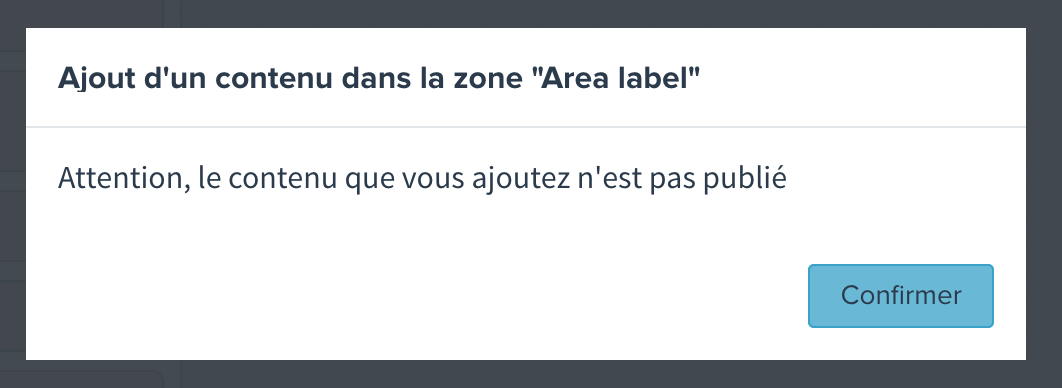

• @areaOptions(warnIfUnpublished: Boolean): enable or disable a warning dialog when an unpublished article is added to the list.







• @seed(ids: [Int!]!): defines the ids of the articles displayed in preview.

Metadata field

A special metadata field allows you to query metadata defined during the generation of the newsletter.

Example

{
  metadata {
    environment
    date(format: "YYYYMMDDHHmmss")
    url
    trackingDate: date(format: "YYYYMMDD")
    longDate: date(format: "dddd D MMMM YYYY")
    provider {
      __typename
      ... on SelligentMetadata {
        segment {
          api_name
        }
      }
    }
  }
}

As an example, data retrieved from this query may help you in building unique campaign names: my_NL_${metadata.date}_${metadata.provider.segment.api_name}_${metadata.environment}. Notice that you can format date field to fit your needs (title, tracking, etc..).

Fetch field

A special fetch field allows you to execute an HTML request directly from GraphQL.

Example

{
  fetch(
    url: "https://example.com/api/resources/"
    method: "get"
    headers: [
      ["content-type", "application/json; charset=UTF-8"]
      ["x-allow-by-header", "XXX"]
    ]
  ) {
    status
    body
  }
}

body is not automatically parsed, if the content is in JSON, you have to use JSON.parse in Handlebars helpers.

Query Forecast

Access Forecast data in newsletters threw forecastTopPageviewArticles field.

Example

{
  topViews: forecastTopPageviewArticles(
    limit: 4
    query: {
      since: "2d"
      device: "all"
      section: "mySection"
      publishedSince: "7d"
      medium: "all"
    }
  ) {
    id
    title
    url
    chapo
    pricingTier {
      value
    }
    image(width: 240, height: 120, aspectRatio: ratio_2x1) {
      url
      alt
      width
      height
    }
  }
}
