Integrate with external publishing system

A step-by-step tutorial to integrate your external publishing system

Sirius offers a bidirectional communication system with any publishing system. It gives you the opportunity to synchronize work with the entire newsroom.

Internally Sirius uses a branch system to make it possible. When a periodical publication is linked to the article, Sirius automatically creates a branch of that periodical. It is possible to subscribe to this branch and to submit changes to this branch. When a branch is updated by Sirius (manually using "Print export button" or automatically), an "articleBranch" event is emitted with a "published" action. Using a updateBranch mutation it is possible to update a branch. Changes are automatically visible in Sirius.

Receive article from Sirius​

Subscribe to "articleBranch" event​

  • Manage your apps (https://*.sirius.press/admin/apps)
  • Select "Branche d’article" event
  • events contains branch data (title, chapo, blocks...), query API for missing fields
  • Event > articleBranch
  • Add a status to inform users when success copies or failed

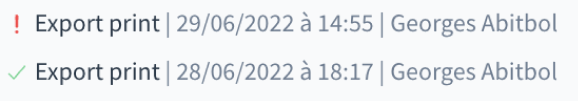

Export statuses

See the Apps documentation for further details and watch the "Apps & Events" screencast.

Trigger event​

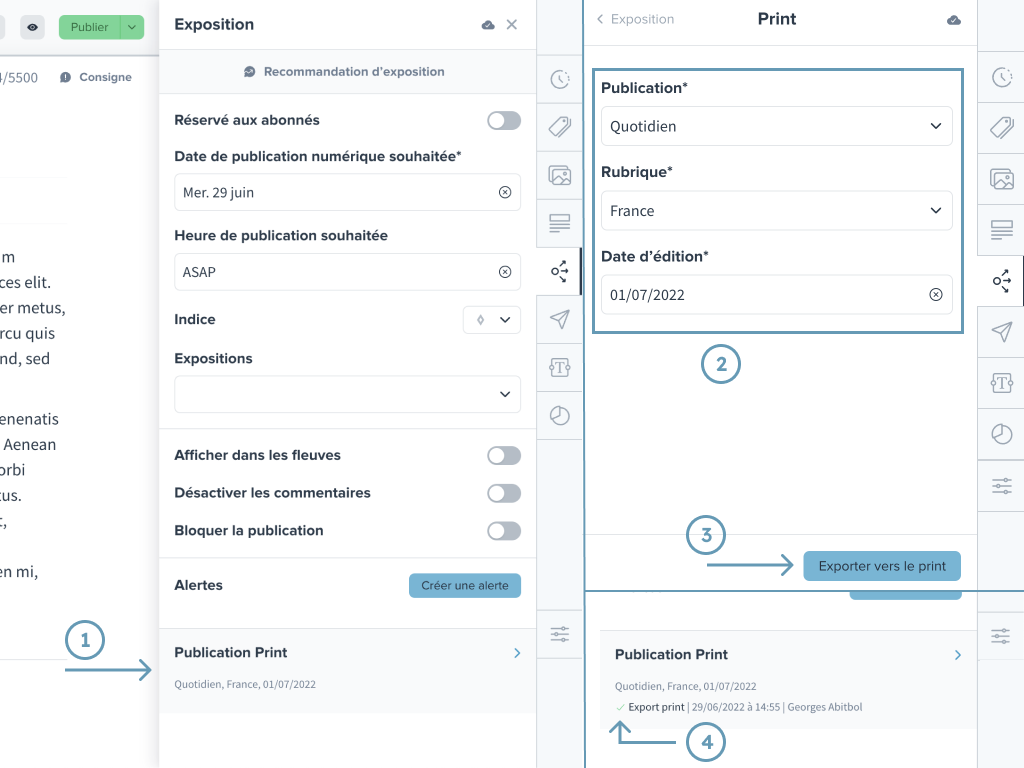

Export print

  1. Create "print" export
  2. Select which periodical, section and edition date (see https://*.sirius.press/admin/periodicals to manage periodicals)

or from API with updateArticle mutation:

  1. Then export to your print system
  2. Well received ✅

Article print edition​

At this moment, Sirius has no more control in the article, it follows your print system life-cycle...

Printing

Before sending back article, you have to register your external workflow state into Sirius.

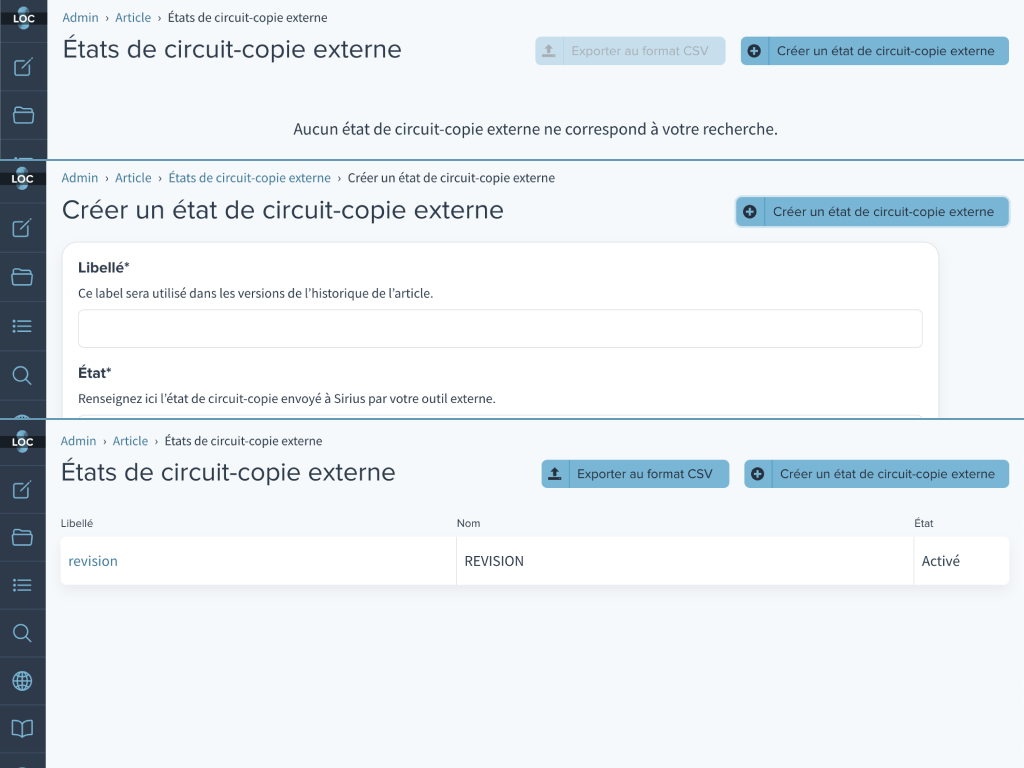

Register external workflow state​

Register external workflow state

These records will be useful while you update article "print" branch to inform version state. State will be displayed directly into Sirius article version panel (with chosen acronym + color)

Query Article branches​

Once article has related periodical (periodicalId), you able to query article branches.

⚠️ Currently, articles have only one branch for printing

query {
  node(id: "<Article ID>") {
    id
    ... on Article {
      branches {
        published
        firstPublishedAt
        publishedAt
        article {
          id
        }
        title
        chapo
        blocks {
          id
        }
        featureImage {
          image {
            id
          }
        }
        periodical {
          id
        }
        periodicalSection {
          id
        }
        periodicalSectionLayout {
          id
        }
        periodicalRelease {
          id
        }
        periodicalEditionDate
        externalWorkflowState {
          id
        }
      }
    }
  }
}

Update article print branch​

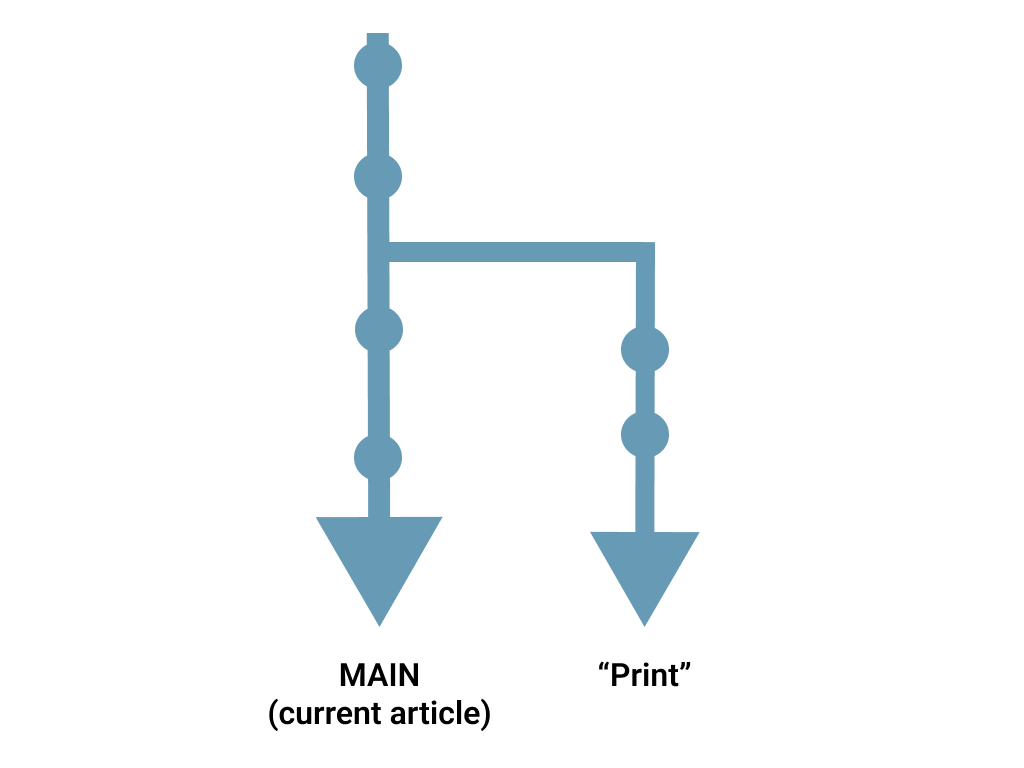

Article branch

Now, you can update your article print branch!

For instance:

  • Redefined title & chapo
  • Created four new blocks
  • set new external workflow state
mutation {
  updateArticleBranch(
    input: {
      articleId: "<Article ID>"
      title: "New title"
      chapo: "New chapo"
      blocks: [
        { type: text, textBlock: { textType: paragraph, html: "block text" } }
        { type: image, imageBlock: { imageView: { imageId: "<Image ID>" } } }
        {
          type: link
          linkBlock: {
            url: "https://twitter.com/LarsJohanL/status/1543612532291674115"
          }
        }
        { type: separator }
        #...
      ]
      externalWorkflowStateId: "<Previously created external workflowState ID>"
    }
  ) {
    featureImage {
      image {
        id
      }
    }
    article {
      id
    }
    publishedAt
    firstPublishedAt
    published
    title
    blocks {
      ... on TextBlock {
        textType
        html
        styleName
      }
      ... on ImageBlock {
        imageView {
          image {
            id
          }
          croppings {
            aspectRatio {
              key
            }
            width
            height
            top
            left
          }
          defaultCropping {
            aspectRatio {
              key
            }
            width
            height
            top
            left
          }
          caption
          url(width: 20, height: 50)
        }
        caption
        position
        size
      }
      ... on LinkBlock {
        url
        ... on ArticleLinkBlock {
          title
          article {
            id
          }
          displayMode
          prefix
        }
        ... on TweetLinkBlock {
          tweet {
            id
          }
        }
        ... on VideoLinkBlock {
          video {
            id
          }
        }
      }
      ... on SnippetBlock {
        snippet {
          id
        }
      }
      ... on ProductBlock {
        product {
          id
        }
      }
      ... on ProductSummaryBlock {
        productSummary {
          id
          name
        }
      }
    }
  }
  #...
}

If you don't pass blocks, title and/or chapo in input, these will be copied from previous version

On Sirius​

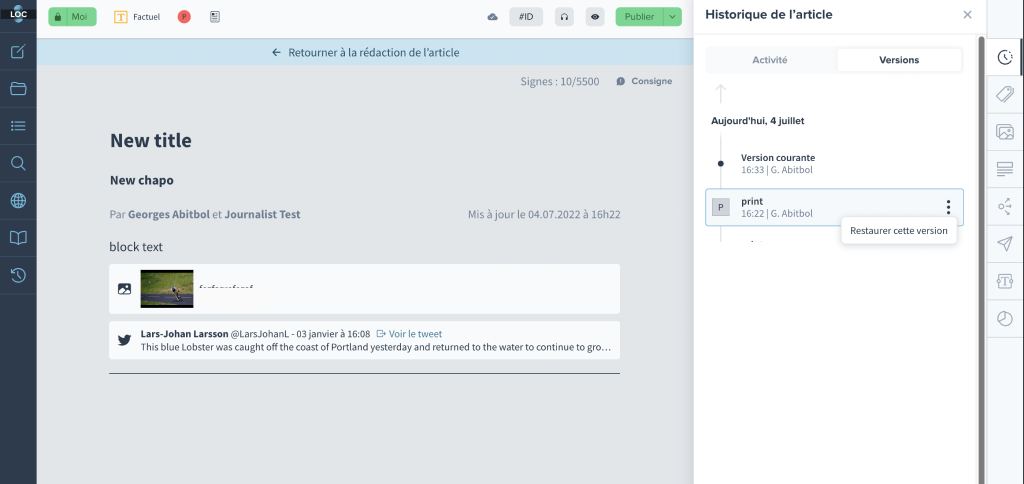

Go on your article > Select "Historique" > "Versions" tab. Here, you are able to visualize your changes, and restore article from this version.

Article version panel This panel will be upgrade soon! Better branches visualization, and so on

You're now able to integrate your external publishing system 🚀

Unlink article print branch​

Sometimes you want to notify Sirius that the article print branch is no longer linked in the publishing system. You can do this by sending a updateArticleBranchLink mutation with articleId and linked fields. (relinking the article print branch is not supported yet).

mutation {
  updateArticleBranchLink(
    input: {
      articleId: "<Article ID>"
      linked: false
    }
  ) {
    article {
      id
    }
  }
