Creating a new internal custom field in administration panel

In this guide we will see how you can create a new custom field and how browse it with GraphQL API.

Introduction

For this example, we will see how to add a custom twitter username text field on Authors

Creating a new custom field

  1. Login to Sirius, if you don't have an account, ask a Sirius owner to create one for you.
  2. Be sure your user has the "customFields:full", usually the "Owner" role.
  3. Go to administration custom fields page. AdministrationChamps personnalisés

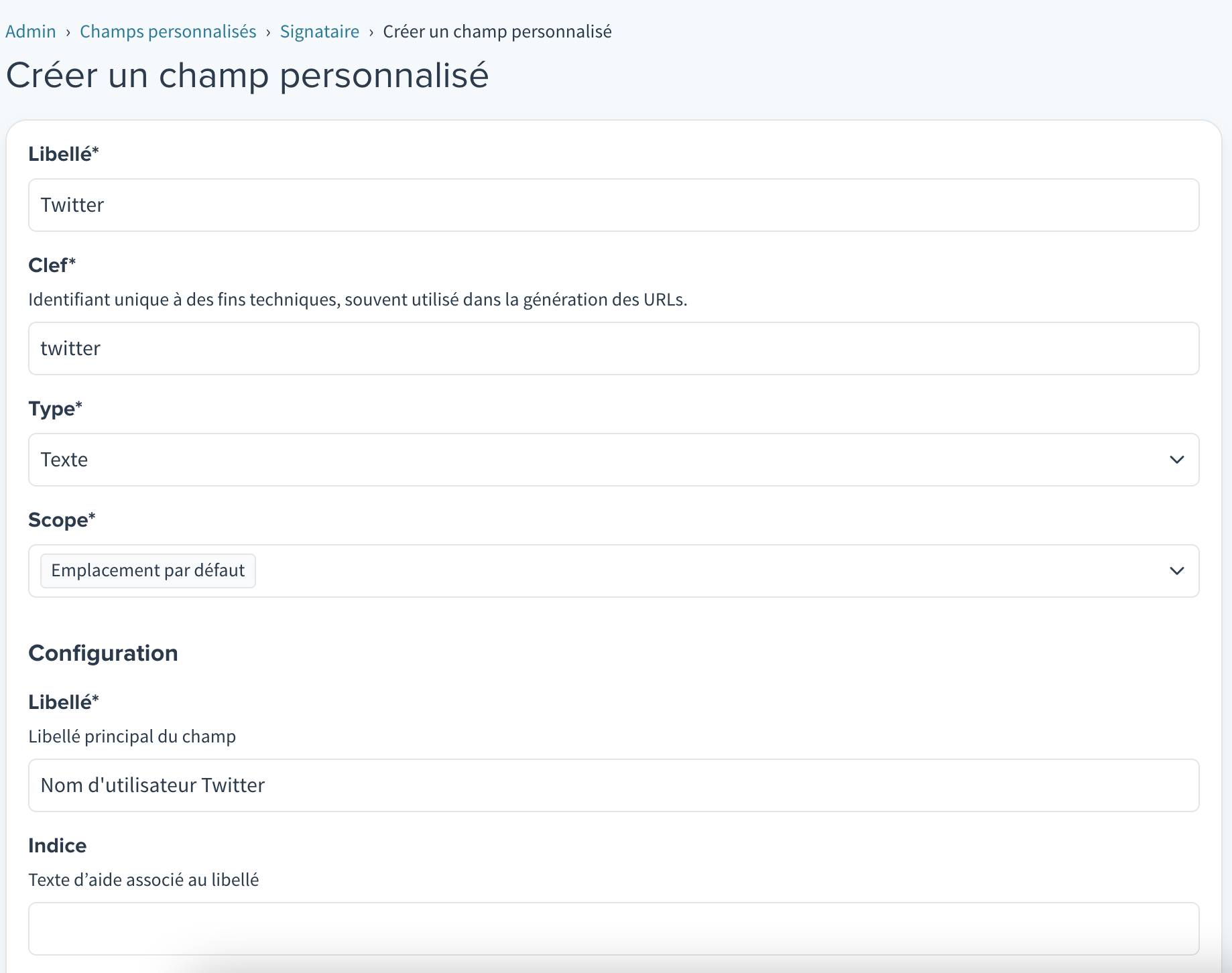

  4. Click Signataire then Créer un champ personnalisé

Create custom field

Update custom field value

  1. Once twitter had been created, go to the author page. AdministrationSignatairesPick one
  2. Fill new twitter text custom field
  3. Save the author

Retrieve twitter from authors

You can query this specific author's custom field by a simple call to the GraphQL API (see forming-calls and Author)

query Author {
node(id: "c3RnLWxlbW9uZGU6Q3VzdG9tRmllbGQ6MzY=") {
... on Author {
id
custom {
twitter
}
}
}
}

With AuthorCustomFields:

type AuthorCustomFields {
twitter: String
}

The result of this query is an Author object with twitter custom field as text:

{
"data": {
"node": {
"id": "c3RnLWxlbW9uZGU6Q3VzdG9tRmllbGQ6MzY=",
"custom": {
"twitter": "@foobar"
}
}
}
}

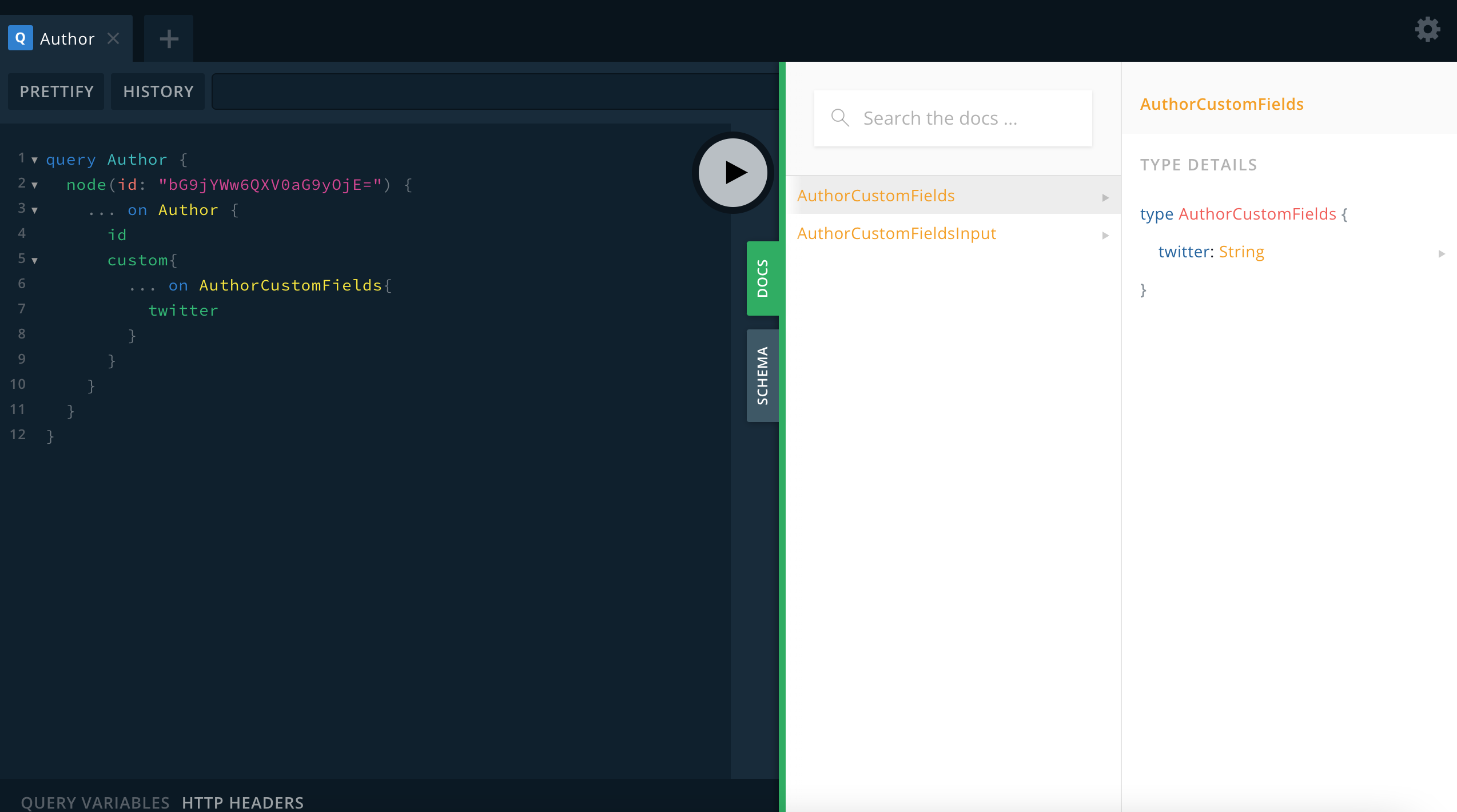

As you can see, types are generated automatically based on your Sirius configuration. Don't forget to check Sirius GraphQL Playground to see updated schema that displays custom fields.

Sirius GraphQL Playground
