Creating a new internal custom field in administration panel

In this guide we will see how you can create a new custom field and how browse it with GraphQL API.

Introduction

For this example, we will see how to add a custom twitter username text field on Authors

Creating a new custom field

1. Login to Sirius, if you don't have an account, ask a Sirius owner to create one for you.
2. Be sure your user has the "customFields:full", usually the "Owner" role.
3. Go to administration custom fields page. Administration ‣ Champs personnalisés

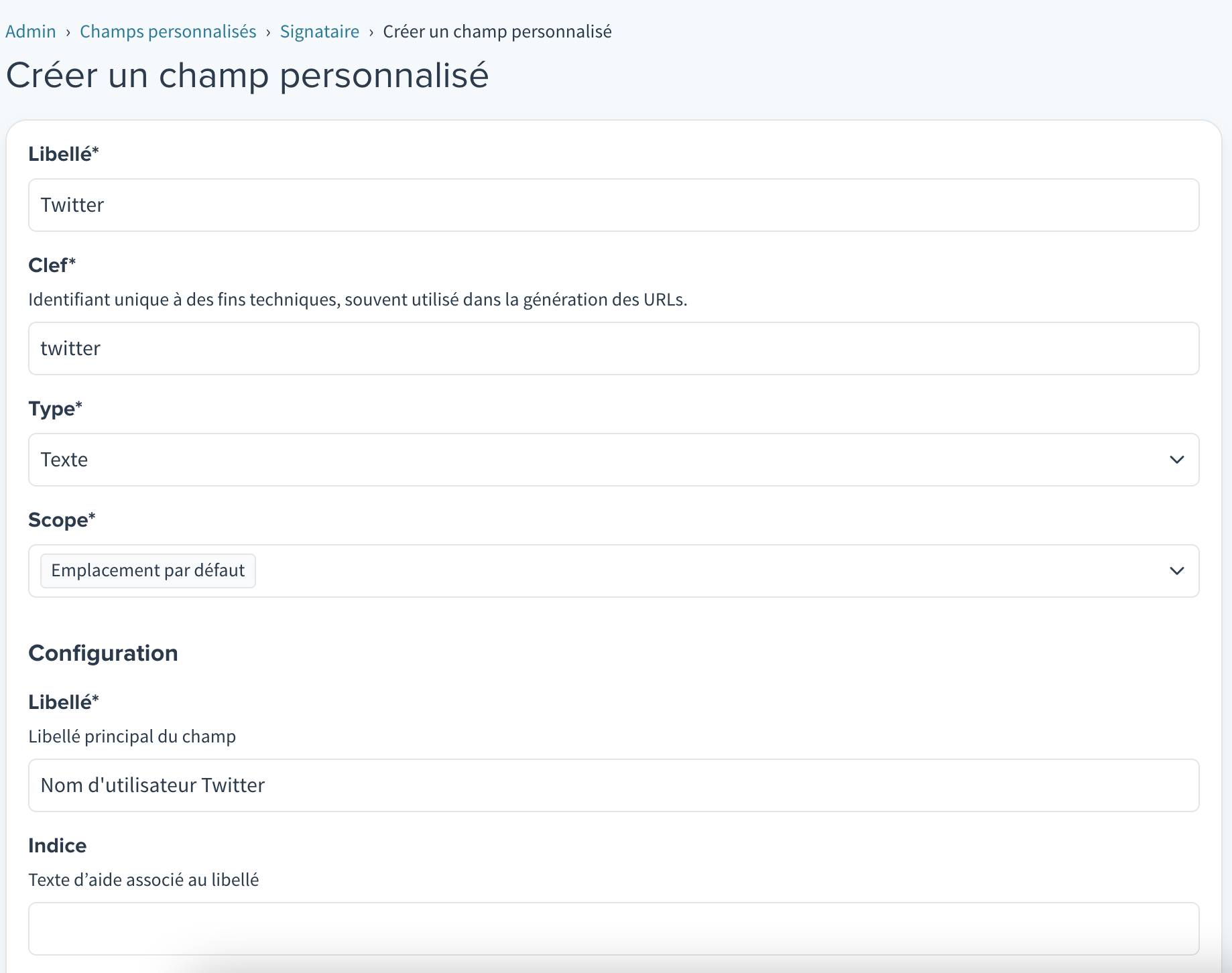

4. Click Signataire then Créer un champ personnalisé

Update custom field value

1. Once twitter had been created, go to the author page. Administration ‣ Signataires ‣ Pick one
2. Fill new twitter text custom field
3. Save the author

Retrieve twitter from authors

You can query this specific author's custom field by a simple call to the GraphQL API (see forming-calls and Author)

query Author {
  node(id: "c3RnLWxlbW9uZGU6Q3VzdG9tRmllbGQ6MzY=") {
    ... on Author {
      id
      custom {
        twitter
      }
    }
  }
}

With AuthorCustomFields:

type AuthorCustomFields {
  twitter: String
}

The result of this query is an Author object with twitter custom field as text:

{
  "data": {
    "node": {
      "id": "c3RnLWxlbW9uZGU6Q3VzdG9tRmllbGQ6MzY=",
      "custom": {
        "twitter": "@foobar"
      }
    }
  }
}

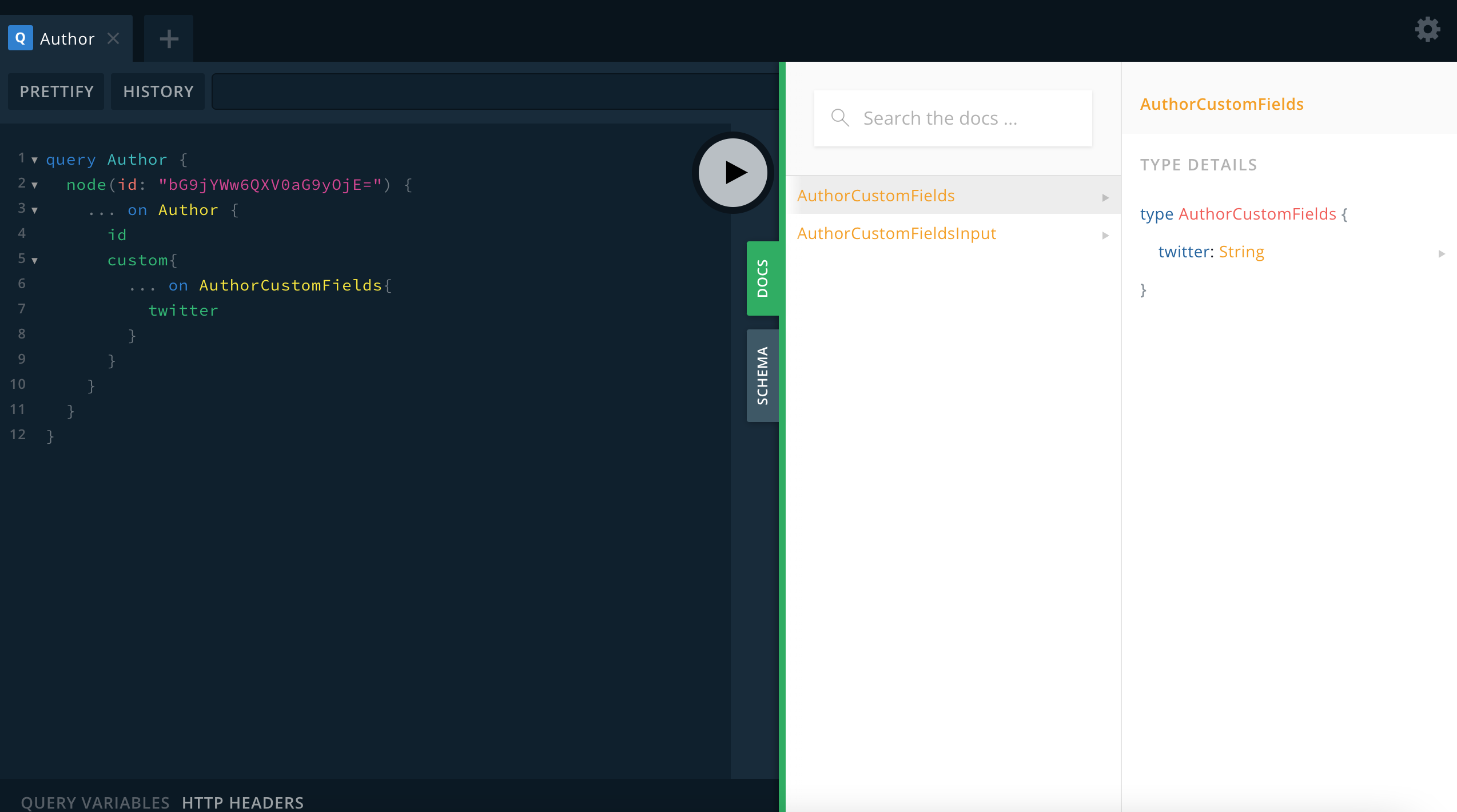

As you can see, types are generated automatically based on your Sirius configuration. Don't forget to check Sirius GraphQL Playground to see updated schema that displays custom fields.
